Monday, February 28, 2011

Part 4 - Installing the shiny bits

Adding the shiny bits is straight forward. Everything requires either a 3/8-16 bolt or 5/16-18 bolt. Just make sure you have a handful of each of varying lengths (3/4" to 1 1/2"). At this point, nothing is being fastened properly as everything will need to be disassembled for paint and body filler. Final assembly is done using the correct torque specification and locktite.

The pulley brake consists of the pulley and rotor integrated into one assembly. This is very cool but there is some debate regarding the merits of this approach because of the effects of heat on the belt. When you brake, you are converting kinetic energy into heat which will be transferred into the drive belt. I have resolved that if this is to become a real problem, I won't be using the brake.... it will be there for show. I'm starting to understand "all show and no go" but I fully intend it to go. Just need to figure out the stopping thing.


There are 4 major components to the pulley brake system from DNA. The rotor, a spacer, 4 piston caliper and the bracket. The spacer makes sure that the pulley is far enough out from the wheel hub so that the belt doesn't rub on the wheel. Forgot to mention - this is a belt drive bike.

The pulley bolts to the wheel and spacer. The caliper bolts to its bracket.

Caliper and bracket

Rear wheel assembly

There is another critical piece of the assembly that secures the brake bracket to the swing arm to prevent the caliper from rotating when the brakes are applied. This requires a brake tab to be welded to the underside of the swingarm.

Mounted pulley brake

Mounted the forward controls and headlight.

Right side forward controls with master brake cylinder

Left side forward controls with clutch lever and kickstand

Front brake caliper - matches rear

Headlight. E.T.

Sunday, February 27, 2011

Part 3 - Getting off the floor

The first trial assembly of the roller was done working on the garage floor. While it only took a couple of hours, crawling on the ground got old fast. A friend sent me a link for a used motorcycle lift on craigslist that I ended up buying.

Item #2792

The yellow HF lift was perfect for lifting the bike leaving the wheels free. At full extension of the lift, the bike was still too low (about 16 inches off the ground).

After more browsing at Harbor Freight, I came across a full size lift.
1000 Lb. Capacity Motorcycle Lift

Most reviews were positive and I found a coupon which reduced the price to $279. Removed the rear seats from the mini-van and headed down to Harbor Freight to pick up the lift. It was a real bear to load. It took a forklift and 3 guys to get it loaded into the van. The package weighs 350 pounds. Getting it out single handed was another bloody mission.

It fits.... but only just

Man-handled to the ground

Removed some packaging to try and reduce the weight. Eventually put one end on a skate board and eased it into the garage. I might have mentioned - this thing is heavy, very heavy.

There is no way a person working alone is going to lift the thing out of the crate. The alternative is to get a hammer and smash the crate out of the way.... which is what I did.

After much cursing, I was able to liberate the lift from the crate and get it's wheels on. This simplifies moving it around. If you buy one of these, make sure you have a truck, a case of beer and a willing helper or 2. Handling it on your own is asking for trouble. Trying it without beer is just plain stupid.

After final assembly, rolled the bike up the ramp onto the lift and realized that the lift was too short for the bike by about 4 inches. Made the obligatory trip to Lowes to get steel to make extensions to support the front wheel off the edge of the main table. This was a pretty straight forward job.

Top view of Lift with front wheel extension

Bike on lift

The lift is very sturdy and it makes a huge difference being able to work at a decent height. I have the table up at 30 inches which is almost twice what I could get on the smaller lift. Everything functions the way it should. The hydraulic jack was empty so I had to go to Advance Auto Parts to buy Jack Oil. No big deal. Having a lift beats crawling around on the floor.

The little yellow HF lift will probably still see plenty of service down the road as it's really handy if you need to support the bike with the wheels free.

Part 2 - Parts

There are millions of different parts available. The parts you select are between you, your sense of style, and the size of your wallet. I'm a member of the "you get what you pay for" school of thought but after many hours on the web researching prices, I'm convinced that you can easily pay more than you need to.

The front brake caliper is a good example of extreme price variation for the exact same part. I wanted the front caliper to match the rear pulley brake caliper. It is a decent quality DNA part with P/N M-BC-1002. Prices varied from $274 ( on sale ! ) to the $152.95 I eventually paid. The DNA website has the part available for $288!

Another example of extreme price variation is the starter motor. Prices are all over the map. The Thunderfire 1.75kW Starter Motor ranges from $329 to $134 for exactly the same part from the same manufacturer. Obviously I ordered the $134 part from Jireh Cycles which includes free shipping. Ultima P/N 70-225. According to Ultima, the 1.75kW unit is a good match for the 113 motor.


Here's the parts list so far with the ebay member id or website as applicable. Most parts have been purchased off ebay:

DNA 65 Tooth Brakester Pulley Brake. Malibu Motorcycleworks $500. Elsewhere $881 and up

mototeks ( 1771)   $152.95 elsewhere $274

2wheelproject ( 467)   $49.98 elsewhere $74 and up

Ultima Programable Ignition for Harley Davidsons
gopartsce ( 1690)   $145.00 elsewhere $199
NOTE: The Ultima motor comes with the electronic ignition module installed. You don't need this kit. All you need is the single fire coil and plug wires. It is more cost effective to buy the coil and plug wires separately. However, the ignition module in this kit is more advanced that the one that comes with the motor so it could be a useful upgrade.

Ultima Plus Complete Electronic Wiring System
jirehcycles ( 3330)   $172.95 elsewhere $195
connectors are Amp/Tyco Mate-N-Lock.

Item pictureCustom Chrome Rotor Bolts For Harley Davidson Front HD
mbsmfg ( 13412)    $7.99 elsewhere $12.99
5/16"-18  x 1" Allen Button Head Chrome Bolts

bididi-bodidi-bu ( 532)    $45.71
This part is as advertised but I should have chosen a polished finish. I'll live with it for now.

demonscycle ( 63031)   $34.97 with free shipping. This is a good deal. I have seen these mirrors in the $70 range.

demonscycle ( 63031)   $73.99 with free shipping

demonscycle ( 63031)   $219.99 with free shipping

2wheelproject ( 467)   $27.98 elsewhere > $44

Ultima Elbruto 113 V-Twin driveline from Jireh cycles. Includes 3.35 inch drag style open primary with outboard bearing support and Right Side Drive gearbox with hydraulic clutch. Ordered the black version. Place the order on a Friday and the transmission and primary arrived the following Wednesday. The motor would have been here too, but I changed my mind regarding EPA compliance. Initially ordered the competition series motor which is non-EPA compliant. The problem with this is that you can only build one bike in your lifetime that is non-EPA compliant and you can't sell it for 5 years after it is titled. Even though the EPA requirements don't appear to be enforced uniformly across all states and counties, it would be my good fortune to get stuck  in the 5 year bind. Emailed Mike @ Jireh on Monday and he was able to stop shipment on the competition motor and make the switch to the more expensive (yes- compliance costs an extra $300) EPA complaint motor. The motor arrived on the Friday, exactly one week after the first order and 4 days after the change. I'll say it again - Jireh Cycles are excellent.

The motor arrives without any mounting hardware. This kit has all the required hardware to properly mount the motor. Ordered from Jireh $19.95  Elsewhere $29

Hand controls were a bigger problem than I expected simply because of style issues. There are many controls out there but I could only find one set that made style sense for the bike. The selected set has very low profile switch housings that make for a sleek modern look instead of the bulky Harley traditional style switches. BILLET HYDRAULIC HAND CONTROLS SWITCHES BDL FIT HARLEY
demonscycle (63188) $454 with free shipping. Elsewhere: roughly $600 with switches.

BATTERY CABLE SET  Ultima all FLH & FLT Dresser, Clear   1993 - Later Battery Cable Set Ultima all FLH & FLT Dresser, Clear Ground 13" Battery to Solenoid Starter - 14" (Update: too short! - needed about 19")
P/N 18-734  $20.99  elsewhere $27.99

Charging System w/ Late OEM Style Rotor for Harley
bk-rider (59045)  $119 with free shipping. Elsewhere $139 and up

Oil Filter And Regulator Mount Kit for Harley

bk-rider (59844)  $49.99 with free shipping. Elsewhere $79 and up to $96
Update - does not fit the frame. Will be flipped on ebay. Any takers?!

Spyke 454210 Swivelling Petcock
rmrobinson1911 2261) $59.95 with free shipping.
Elsewhere $82.44
The petcock arived without the outlet fitting.
Emailed the seller on Friday and received the missing part on Monday.
Now that's service!

For the oil lines, there are some high quality expensive options from Goodridge and Russell and some lesser expensive lines from Midwest. The lines from Midwest through Jireh Cycles run about $20 each (some less some more depending on the length). A very similar oil line system is available from Russell for around $32 each ( some more some less depending on the overall length)

I finally pulled the trigger on the braille B129. Purchased through Summit Racing for $149. Added a battery tender to the order. The B129 fits nicely in the battery box and there is space down the front of the battery to run the battery cables. The cable to the starter needs to be about 19 inches. The battery needs to have a capacity of at least 270 cold cranking amps (CCA) for the starter. The battery box embedded in the oil tank of the War Eagle frame is tiny and designed for a Harley V-Rod battery.

The internal throttle will keep the throttle cables from hanging down from the handlebars. The plan is to run the cable inside the handle bars and exit from the bottom for a clean look. Purchased from Get Lowered Cycles on ebay. $84.98 with free shipping. Elsewhere much the same.

The filter mount is the more traditional style I should have purchased the first time. $34 from Jireh. Elsewhere $44 and up.

Agonized for days about the oil lines. It is difficult to figure out what's important and what's not when you don't have experience with this kind of stuff. Here's the Jireh Cycles order for the oil lines. Once the regulator arrived I could finalize the line lengths. I was lucky here - my estimates worked. You can build lines yourself and cut to the exact length you need, but there is no DOT approval for doing it yourself. I have no idea whether DOT approval is needed or not but decided that it can't hurt and the lines look good.

Gas line, brake line and associated fittings. I estimated the lengths needed with 3/8" vinyl tubing. This works out quite well since the vinyl line approximates the bends of the real thing to some extent.

Dakota HLY-3015 Speedo/Tachometer/Odometer. This is an expensive item but in my opinion one of the nicest gauges on the market. I found a good deal on ebay. elvisoldguy (498) $375 + $10 shipping. Elsewhere $423 and up.

The gauge needs a housing. Found a housing at roughly half price from dakota digital ebay store. dakdig ( 359 ). $39.95 with free shipping. Elsewhere $79 and up.

Seems absurd but the bracket for mounting to the handlebar costs more than the gauge cup. ebay usmotoman (5613) $65 with free shipping.

Chrome Billet Fender Spacers for Wide Glide Front Ends
Used to install the narrow fender on the Wide Glide front ends.
1-1/8" wide with 2-3/4" mounting hole spacing.

demonscycle ( 65566) $59.99 with free shipping

Set of 2

Panther 1-1/2" 139 Tooth Drive Belt. $139 from demonscycle (63188) with free shipping.

Big Growl Exhaust Pipes P/N 60-301 from $104. Elsewhere $189

Exhaust Flange Kit from ebay user henleyskustompaintinginc129  $27.99 with free shipping.

Chrome Rear Brake Line Tee with AN-3 fittings and 1/8 NPT for a hydraulic brake switch.
This is the second brake tee. The first had a 3/8-24 thread female port - the hydraulic brake switch requires 1/8 NPT.

robw23 61289Purple shooting star icon for feedback score in between 50,000 to 99,999) $12.99 + $2.54 shipping

Transmission speed sensor for the Dakota speedometer. This is not the Dakota original part.

Billet Aluminum Speed Sensor for 1996+ Harley Big Twin

bk-rider ( 71097)
$52.99 + $6 Shipping

Latching headlight relay to allow use of a momentary pushbutton for switching between hi beam and lo beam. This relay is a standard VW part 111-941-583. sourceauto (2129) $24.95 + free shipping

Hydraulic Brake Switch  sampowersports1 (36810 )  $13.99 + free shipping

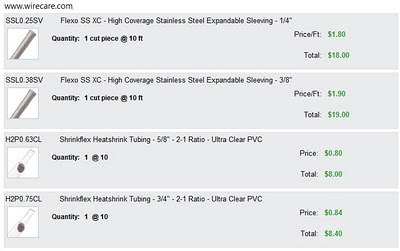

Techflex Flexo Stainless XC stainless steel braid and ultra clear heatshrink. The braid will be used to dress up and protect exposed wiring. The heatshrink will be used in painted areas to protect the paint from the abrasive nature of the stainless steel braid.

Techflex 5/16" Chrome XC Mylar Sleeving 25 ft.
Parts Express $12.82 for 25 feet

This is mylar that looks like chrome plated steel braid. Bought it to try it out. I have other projects that could use this. Not sure when I'll get to these other projects.

Stock style footpeg supports for Harley.
bk-rider (75373Purple shooting star icon for feedback score in between 50,000 to 99,999)
 $12.99 + $6 shipping

Turn Signal Relocation Fork Clamps for 41mm front forks.
sampowersports1 38529Teal shooting star icon for feedback score in between 25,000 to 49,999
 $19.99 with free shipping

There is no wire exit hole for these clamps. The hole through which the turn signal mounts was also too small and had to be drilled out to 3/8 to fit the turn signals below.

Turn Signals - Red for Rear, Amber for front. Red Chrome Bullet Light Pair - Smooth.
sampowersports1 38529Teal shooting star icon for feedback score in between 25,000 to 49,999
$21.99 Per pair with free shipping.

Chromed Metal Construction, 12 volt, 23 watt bulb included. They measure 3" long x 1 1/2" wide with a 5/16" mount stud. They are very sturdy and well made.

3/8" 24x60" Neoprene Sponge Anti Fatigue Floor Mat. This is for the seat padding.

lewellyn390 28702Teal shooting star icon for feedback score in between 25,000 to 49,999)
$13.50 with $6.25 shipping.

Ordered single stage urethane paint and epoxy primer from Eastwood.
